Silver Durable Stainless Steel Zoo Mesh And The Size As Custom-made
1. Material:
Stainless steel wire SUS304, SUS304L, SUS316 or SUS316L
2. Feature:
Acid-resisting, alkalinity-resisting, heat-resisting, wear-resisting and oxidize-resisting
3. Weaving patterns:
Plain weave and twill weave, Dutch weave
4. Process:
compiled by a special process, metal lines with the unique flexibility and brightness, deeply museum, exhibition hall and other brand personality decoration of all ages.
5. Feature:
nonflammable, high strength, durable, easy maintenance, functional and decorative effect vivid, strong, and to good effect on the building structure protection. The installation is simple and fast, shape chic and elegant.
6. Applications:
curtains, screens for dining hall, isolation in hotels, ceiling decoration, animal containment an stair channel high-grade interior decoration of hotels, etc
product parameter
| Feature |
Hand knitting, Light weight, high-strength, rustless,
eco-friendly, safety, long service life, ect |
|
| |
| Usage |
plant climbing wall, zoo mesh |
|
| Technique |
Woven |
|
| Application |
Woven Wire Mesh |
|
| Hole shape |
Square |
|
| Surface treatment process |
polishing |
|
| Length |
Requirement |
|
| Material |
Stainless Steel Wire |
|
| Weave Style |
Plain Weave/Twill weave |
|
| Color |
Silver, Black, etc |
|
specification
| Stainless Steel Rope Mesh |
| Code |
structure of wire |
Wire rope Diameter |
Aperture |
Breaking stenght |
Min.Breaking load (KN) |
Weight per sqm |
| inch |
mm |
inch |
mm |
lbs. |
KN |
KG |
| WCH-3212P/B |
7x19 |
1/8 |
3.2 |
4.75 x 4.75 |
120 x 120 |
1,600 |
5.1 |
0.83 |
| WCH-3210P/B |
7x19 |
1/8 |
3.2 |
4 x 4 |
102 x 102 |
1,600 |
5.1 |
1.02 |
| WCH-3290P/B |
7x19 |
1/8 |
3.2 |
3.55 x 3.55 |
90 x 90 |
1,600 |
5.1 |
1.14 |
| WCH-3276P/B |
7x19 |
1/8 |
3.2 |
3 x 3 |
76 x 76 |
1,600 |
5.1 |
1.35 |
| WCH-3250P/B |
7x19 |
1/8 |
3.2 |
2 x 2 |
51 x 51 |
1,600 |
5.1 |
2.03 |
| WCH-2410P/B |
7x7 |
3/32 |
2.4 |
4 x 4 |
102 x 102 |
920 |
2.65 |
0.57 |
| WCH-2490P/B |
7x7 |
3/32 |
2.4 |
3.55 x 3.55 |
90 x 90 |
920 |
2.65 |
0.64 |
| WCH-2476P/B |
7x7 |
3/32 |
2.4 |
3 x 3 |
76 x 76 |
920 |
2.65 |
0.76 |
| WCH-2460P/B |
7x7 |
3/32 |
2.4 |
2.4 x 2.4 |
60 x 60 |
920 |
2.65 |
0.99 |
| WCH-2450P/B |
7x7 |
3/32 |
2.4 |
2 x 2 |
51 x 51 |
920 |
2.65 |
1.14 |
| WCH-2076P/B |
7x7 |
5/64 |
2 |
3 x 3 |
76 x 76 |
676 |
2.55 |
0.53 |
| WCH-2060P/B |
7x7 |
5/64 |
2 |
2.4 x 2.4 |
60 x 60 |
676 |
2.55 |
0.69 |
| WCH-2050P/B |
7x7 |
5/64 |
2 |
2 x 2 |
51 x 51 |
676 |
2.55 |
0.8 |
| WCH-2038P/B |
7x7 |
5/64 |
2 |
1-1/2 x 1-1/2 |
38 x 38 |
676 |
2.55 |
1.07 |
| WCH-1676P/B |
7x7 |
1/16 |
1.6 |
3 x 3 |
76 x 76 |
480 |
1.43 |
0.34 |
| WCH-1660P/B |
7x7 |
1/16 |
1.6 |
2.4X2.4 |
60X60 |
480 |
1.43 |
0.41 |
| WCH-1650P/B |
7x7 |
1/16 |
1.6 |
2 x 2 |
51 x 51 |
480 |
1.43 |
0.51 |
| WCH-1638P/B |
7x7 |
1/16 |
1.6 |
1-1/2 x 1-1/2 |
38 x 38 |
480 |
1.43 |
0.68 |
| WCH-1630P/B |
7x7 |
1/16 |
1.6 |
1.2 x 1.2 |
30 x 30 |
480 |
1.43 |
0.85 |
| WCH-1625P/B |
7x7 |
1/16 |
1.6 |
1 x 1 |
25.4 x 25.4 |
480 |
1.43 |
1.02 |
| WCH-1250P/B |
7x7 |
3/64 |
1.2 |
2 x 2 |
51 x 51 |
270 |
0.7 |
0.29 |
| WCH-1238P/B |
7x7 |
3/64 |
1.2 |
1-1/2 x 1-1/2 |
38 x 38 |
270 |
0.7 |
0.38 |
| WCH-1230P/B |
7x7 |
3/64 |
1.2 |
1.2 x 1.2 |
30 x 30 |
270 |
0.7 |
0.48 |
| WCH-1225P/B |
7x7 |
3/64 |
1.2 |
1 x 1 |
25.4 x 25.4 |
270 |
0.7 |
0.58 |
| WCH-1220P/B |
7x7 |
3/64 |
1.2 |
4/5 X 4/5 |
20 x 20 |
270 |
0.7 |
0.73 |

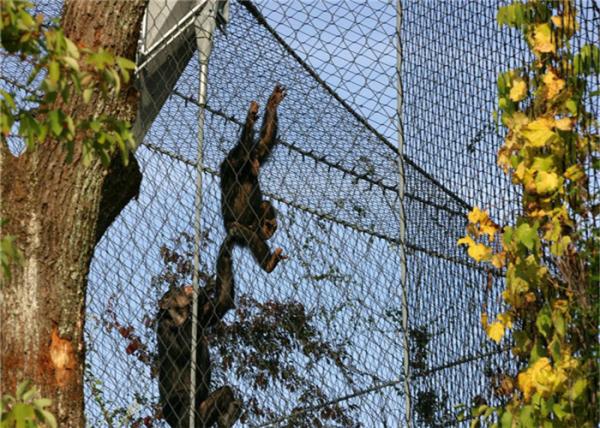

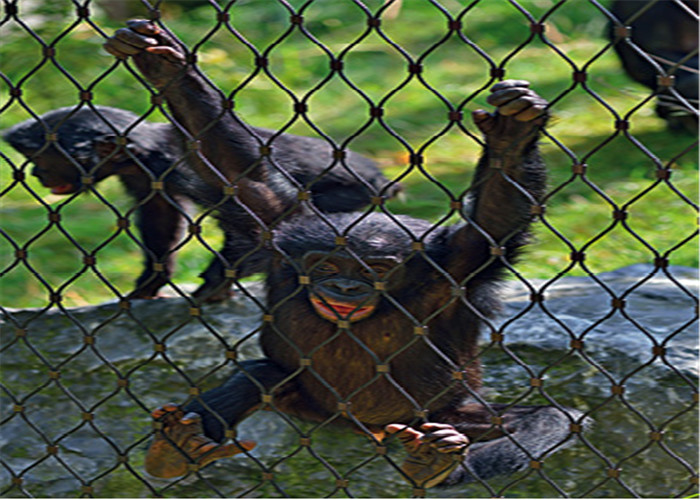

application
