304/316L Stainless Steel Rope Mesh for Bridge Mesh Stair Protection Net

Name: 304316L Stainless Steel Rope Mesh for Bridge Mesh Stair Protection Net
Brand: WANCHI METAL
Price: 1 USD

Quality 304/316L Stainless Steel Rope Mesh for Bridge Mesh Stair Protection Net wholesale

Brand Name : WANCHI METAL

Model Number : WT-010

Certification : SGS ISO9001

Place of Origin : Hebei

MOQ : 100 pieces

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 10000 pieces per week

Delivery Time : 7 days after payment received

Packaging Details : PP film inside and wooden case outside

Material : Stainless Steel Wire,316,Steel,304L,stainless steel 304

Type : Weave Wire Mesh,Rope Mesh,Ferruled mesh

Weave style : Plain Weave

Application : Protecting Mesh,Woven Wire Mesh,decorative

Technique : Woven

Wire diameter : Requirement

Hole shape : Diamond

Color : Silver,can be customized

Usage : Protection

Feature : Corrosion Resistance/Anti-rust/Eco-friendly/Durable

Width : According to requirements

Length : According to requirements

Sample : Avaliable

Mesh size : 20mm-160mm

Size : Customized Width and Length

Contact Now

304/316L Stainless Steel Rope Mesh for Bridge Mesh Stair Protection Net

Stainless steel rope nets are used for high-altitude protection such as stairs, bridges, rooftops, balconies and other places, as well as sports, playgrounds, performance venues and other places. The products have various specifications and are ideal fence protection nets. Therefore, we can call it: stainless steel rope protection net, bridge fence protection net, stair protection net, sports fence, performance field protection net and so on. Since Huamei Stainless Steel Wire Mesh is made of high-quality SUS304 stainless steel wire rope by cross-weaving through a unique process, it has strong tensile strength and breaking force, is resistant to corrosion and does not rust. The fence protection nets required for venues, performance venues, etc. are very suitable, one-time investment, no special maintenance is required, and the service life is more than 30 years, which greatly reduces the risk of personal fall and investment costs.

Products Description

1. Knotted mesh is a kind of plain weave, each warp wire rope crosses alternately above and below each weft wire rope. Warp and weft wire ropes generally have the same diameter.

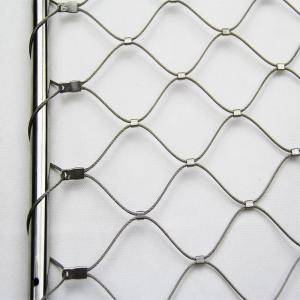

2.Ferruled mesh is of the same physical properties with the knotted mesh, the only difference is in the combination style, the stainless wire rope are combined by the ferrules which are made of the same grade stainless steel.

Product Name	Stainless steel wire rope mesh(stainless steel cable mesh)
Certifacates	CE Certificates
Material	AISI 304 or AISI 316
Wire Diameter	1mm-5mm, the common diameter:1.5mm,2.0mm,3.0mm
Wire Structure	77 or 719
Opening Hole Size	From2020mm to 200200mm,the common size:4070mm 5090mm 60104mm 80140mm.
Woven Type	Ferruled type and Knotted type

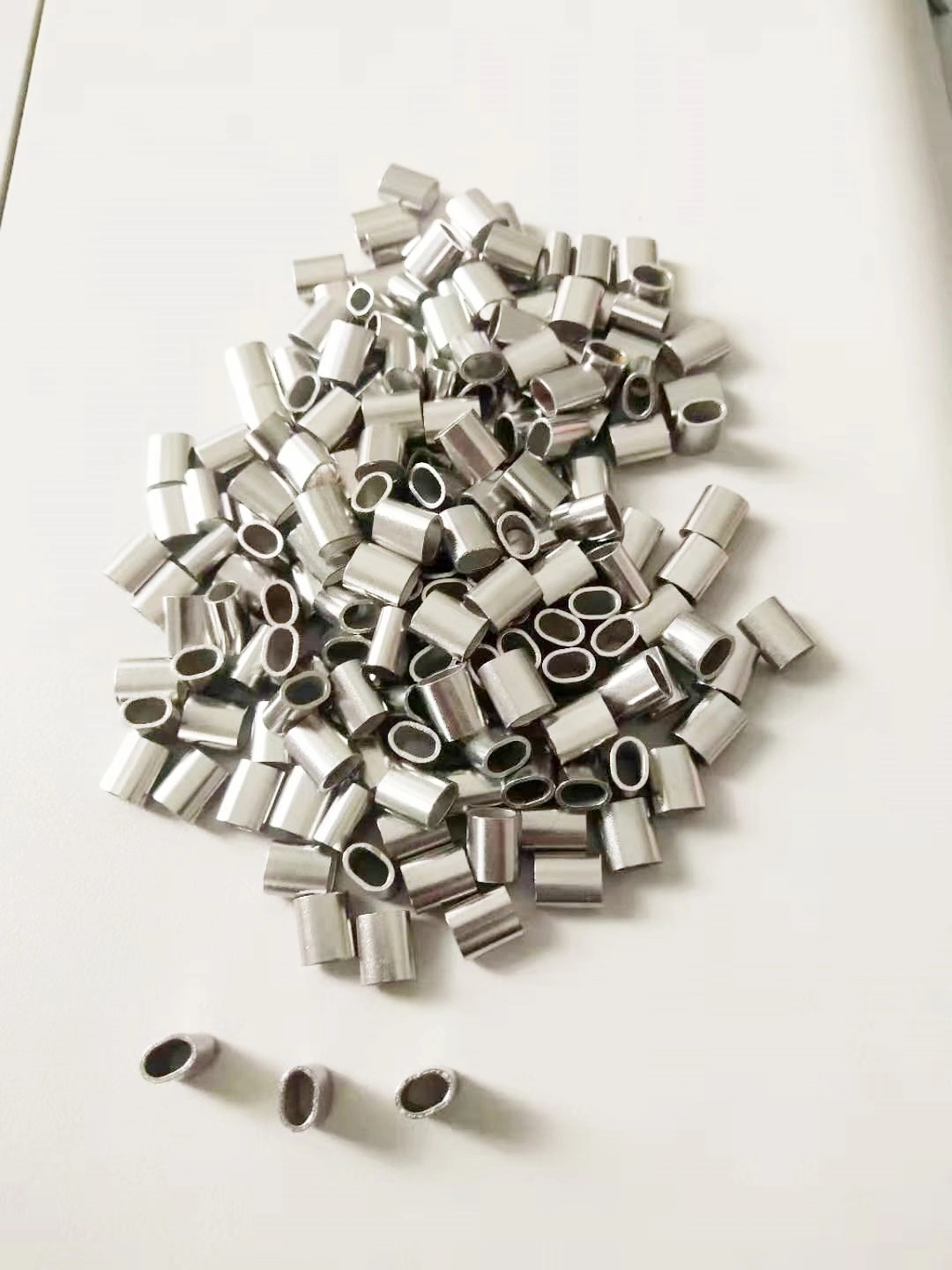

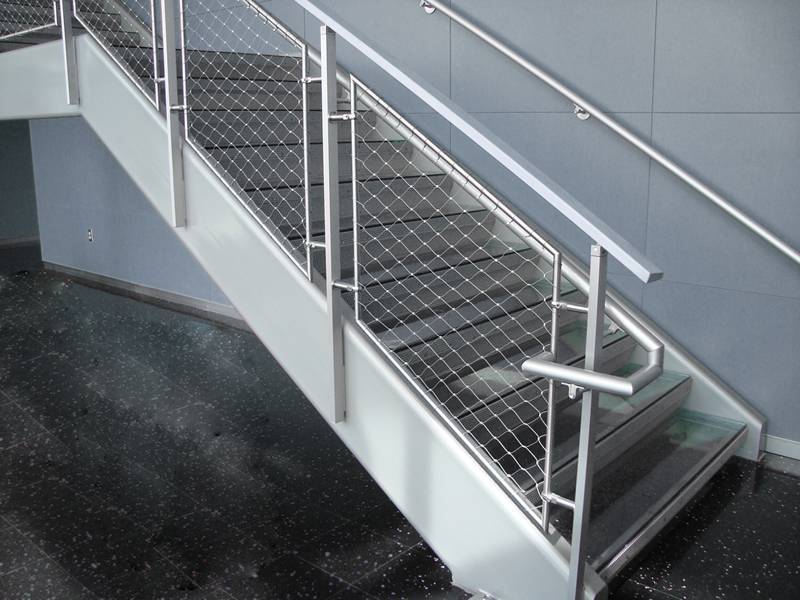

Stainless steel rope net (stair net) (stair wire rope net) (stair protective net) (stair guardrail) is made of stainless steel rope twisted up and down and extruded with steel sleeve. The diameter of the wire rope is 1.0, 1.5, 2.0, 3.0, 4.0mm, the structure of the wire rope is 7 * 7, 7 * 19, 1 * 19, etc., and the material is 304, 304L, 316, 316L. Secondly, we can also provide hot-dip galvanized wire mesh products. The steel sleeve is mainly made of stainless steel, and there are aluminum sleeve, copper sleeve and copper tinning sleeve for customers to choose from. The products are applied to stair protection, safety, suspension stair protection, etc.

304/316L Stainless Steel Rope Mesh for Bridge Mesh Stair Protection Net

Packing & Delivery

Company Profile

Hebei Wanchi Metal Wire Mesh Products Co., Ltd. was established in 2013 and is located in the famous hometown of wire mesh in China. We are a professional wire mesh supplier with more than ten years of experience in the professional production of stainless steel wire mesh. We can provide you with high-quality products and high-quality services. Our company adheres to the development concept of professionalism, integrity and survival by quality, and always adheres to continuous innovation, keeping pace with the times. We will keep our promise and sincerely cooperate with friends from all walks of life for mutual benefit and create a better tomorrow.

FAQ

1.How to make an inquiry of rope mesh?
 You need to provide material, rope diameter, rope construction, mesh apertures,mesh length & width and the quantity to ask an
 offer, you can also indicate if you have any special requirement. We'll provide formal quotatiom list after your inquiry received.

 2.Could you provide rope mesh sample ? How long does the sample need to be prepared?
 Yes, we can provide sample . Sample production time is 5~7 days

 3. Can you tell me how to install the rope mesh?
 Yes, we have professional engineers to help you install the rope mesh. And can solve any problems you have in the installation

 4. Can you provide customized services?
 Yes,we can. We can produce according to your needs, and can recommend you a cost-effective product for you.

 5.What is your MOQ ?
 There is no minimum order quantity, we will do the best to support you.
